Parallel Link Robot–Type Automatic Feeding Unit

Features

1. Products conveyed randomly from upstream processes are picked up by a robot and supplied in synchronization with continuously conveyed cartoner buckets.

2. By incorporating a vision system, the system can correct product orientation, enabling reliable feeding even when product posture is inconsistent. It also supports the receipt of products arranged in multiple lanes.

3. Depending on the robot head configuration, the system is capable of grouped feeding of multiple products at once.

Main Unit Capacity

Processing capacity: 125 units per minute
*The above speed is a reference value per robot unit.

Main Applicable Products

Retort pouches, pillow-packaged products, three-side seal packages, four-side seal packages, tubes, others

Side-Attach Type Automatic Feeding Unit

Features

1. Bottles are separated at a fixed pitch using a side-attach mechanism and supplied to the cartoner by a suction-type transfer head.

2. Each bottle is individually picked up by suction, lifted, and transferred, ensuring reliable feeding without the risk of scratching or damaging the product.

Main Unit Capacity

70 bottles per minute
*The above speed is provided as a reference.

Main Applicable Products

Bottle-type cosmetics, pharmaceuticals, food products, daily-use commodities, others

Vertical Double-Servo Attach Conveyor–Type Automatic Feeding Unit

Features

1. Products conveyed at a random pitch are accumulated in multiple units by a tandem, double-servo-driven attach conveyor and supplied to the main cartoner unit.

2. Operation can be adjusted to match product thickness, enabling stable and reliable accumulation.

Main Unit Capacity

150 bags per minute (per unit)

Main Applicable Products

Three-side seal packages, four-side seal packages, others

Merry-Go-Round Type Automatic Feeding Unit

Features

1. Products conveyed at a random pitch are corrected for pitch and supply timing by a single-servo-driven pitch-correction conveyor, picked up by the merry-go-round unit, and supplied to continuously conveyed cartoner buckets.

2. Randomly supplied products can be fed into a continuously operating cartoner without stopping product flow.

3. A variable-speed merry-go-round system, which adjusts its speed in accordance with the incoming product pitch, is also available in the lineup.

Main Unit Capacity

250 units per minute
*The above speed is provided as a reference.

Main Applicable Products

Retort pouches, pillow-packaged products, three-side seal packages, four-side seal packages, tray products, others

Inverting Double-Servo Bucket Conveyor–Type Automatic Feeding Unit

Features

1. Products conveyed from upstream processes are transferred to a double-servo-driven bucket conveyor, inverted, accumulated in multiple units, and supplied to the cartoner.

2. By supplying products individually into each bucket and performing an inverting motion, stable and reliable inverted accumulation is achieved.

Main Unit Capacity

400 bags per minute (per unit)

Main Applicable Products

Retort pouches, pillow-packaged products, three-side seal packages, four-side seal packages, others

Model：VWKC (BALCONY TYPE)　Film Over-Wrapping Machine

Features

A film-over wrapping machine which pushes cartons to film supplied from a rolled film, sever the film, and wrap the cartons over with the film after accumulating certain number of cartons.

※ Items shown in parentheses indicate special specifications.

		VWKC
Carton （mm）	Width	70～220
	Height	70 ～ 180
	Length	60 ～ 285
Speed (Cartons/Min)		5 ～ 30(40)
Machine （mm）	Length	2,620
	Width	1,230
	Height	1,730
Power Consumption （kVA）		about 15
Air Consumption （Nℓ／Min）		60
Weight (kg)		1,700
Optional Accessories		Automatic Product Feeding Unit, Eye-mark Detect Device, Tear Tape Cutting Unit (V-Shape), Extra Film Magazine, Automatic Film Splicer, Various Sealing Checker, Film Position Detect Unit, Film Position Correcting Unit, Ejector, Film-Roll Lift-Up Unit

Model: VCPD (BALCONY TYPE)　Horizontal Intermittent Cartoner

Features

1. Contributes to a more compact line layout
(700 mm shorter than conventional models)

2. Newly developed carton inversion mechanism enables coding on all six sides

3. Hygienic, user-friendly frame structure

		VCPD140
Carton (mm)	Width	20～105
	Height	10～80
	Length	60～180
Speed (Cartons/Min)		MAX.70
Machine (mm)	Length	3,885
	Width	1,600
	Height	1,920
Optional Accessories		Various automatic product feeding units, automatic size changeover, in-machine GS1 coding and inspection, glue application inspection unit, leaflet presence inspection unit, carton mix-up detection unit, leaflet mix-up detection unit, other options

Model：VCRC (BALCONY TYPE)　Horizontal Cartoning Machine (Continuous Motion)

Features

1. Space saving design fits in only two-thirds of the floor space needed by our conventional cartoners and adapts to a flexible layout.

2. The direct drive system using a servo motor dramatically reduces maintenance works.

3. The ion (C) system + finger (F) holding (H) mechanism ensures reliable opening of cartons.

4. The timing belt in the carton conveyor enables oil-less operation and eliminates stretching defects on the carton finish.

5. All necessary operations are easily performed from the front of the machine.Customer feedback on easy-of-use was given primary importance in the design.

Specifications

		VCRC45	VCRC75
Carton（mm）	Width	30～85	60～150
	Height	20～50	17～65
	Length	83～200	120～220
Speed（Ctn／Min）		50～240	50～240
Machine （mm）	Length	4,477	4,771
	Width	1,373	1,448
	Height	1,280	1,680
	Supplying Length	1,300	1,300
	Body length	3,177	3,471
Power Consumption （kVA）		14	14.4
Air Consumption （Nℓ／Min）		40	40
Weight （kg）		3,000	3,000
Optional Accessories		Carton Bar Code Check, Coding Check, Leaflet Bar Code Check, Leaflet Check, Glue Application Check, Flap Forming & Correction Unit, Color Embossed Coding Unit (Front Only), Leaflet Feeding Unit, Leaflet Folding Unit, Leaflet Large Volume Leaflet Magazine, Automatic Size Change, Various Automatic Feeder Unit

Model：VCRB (BALCONY TYPE)　Horizontal Cartoning Machine (Continuous Motion)

Features

The frame features a balcony-style structure that allows easy cleaning and inspection, with the drive section separated from the product conveyance section to enhance sanitary performance.

Equipped as standard with a forced carton opening mechanism, enabling stable carton removal and forming.

*Items shown in parentheses indicate special specifications.

		VCRB45	VCRB75
Carton （mm）	Width	30 ～ 70(85)	(50)60 ～ 150
	Height	17 ～ 50	17 ～ 65(80)
	Length	(60)84 ～ 200	(100)120 ～ 200(250)
Speed(Cartons/Min)		50 ～ 250(300)	50 ～ 250(300)
Machine （mm）	Length	5,510	5,988
	Width	1,745	1,805
	Height	1,450	1,450
Power Consumption （kVA）		14.4	14
Air Consumption （Nℓ／Min）		40	40
Weight （kg）		3,900	3,500
Optional Accessories		Various automatic product feeding units; coding units; leaflet and pamphlet pick-and-feed units; various inspection and detection units; automatic size changeover; filler bypass; high-capacity leaflet magazine; leaflet folding unit; and other optional equipment.

Model：VCPL Horizontal Cartoning Machine (Intermittent Motion)

Features

1. Intermittent motion cartoning machine which can handle large size cartons.
2. Able to make even height-tall cartons finish beautifully.

		VCPL12
Carton（mm）	Width	100～170
	Height	65～200
	Length	130～255
Speed(Cartons/Min)		15～30
Machine （mm）	Length	3,780
	Width	2,250
	Height	1,600
Power Consumption （KVA）		12
Air Consumption （Nℓ／Min）		300
Weight （kg）		3,500
Optional Accessories		Various Automatic Feeding Unit, Coding Unit, Large Volume Carton Magazine, Ejector, Various Detect Device, Counter

Model：VCVD series THE VERTICAL CARTONING MACHINE

Features

This machine is equipped with functions for carton picking, forming, and sealing. Products are manually inserted from above prior to sealing the top flaps. Manual workspaces are provided on both the front and rear sides of the machine.

With its simple configuration and high versatility, the machine is suitable for a wide range of applications, including small- to medium-volume carton packaging as well as trial production runs for newly developed products.

Size changeover can be easily performed even by inexperienced operators through motorized adjustment (for carton height) and handle operation, combined with one-touch replacement of certain units. An automatic size change specification is also available.

Automatic feeding units can also be installed for products that cannot be laid horizontally, as well as for bulk-weighed items and granular products.

				VCVD 60	VCVD 60S	VCVD 80	VCVD 80S
Carton （mm）	Width			30 ～ 105		30 ～ 155
	Depth			20 ～ 65(110)		20 ～ 65(110)
	Height			(50)70 ～ 250		(50)70 ～ 250
Speed（Ctn／Min）				30 ～ 100		30 ～ 90
Machine （mm）	Length			3,910	5,129	3,910	5,129
	Width			943(1,712)		943(1,712)
	Height			800(1,600)		800(1,600)
	Work Area	A	4 Flaps	1,081	2,300	1,081	2,300
			Insertion Flaps			738	1,957
		B	4 Flaps	1,081	2,300	1,081	2,300
			Insertion Flaps			738	1,957
Power Consumption （KVA）				8		8
Air Consumption （Nℓ／Min）				50		50
Weight（kg）				2,500		2,500
Optional Accessories				Various automatic product feeding units, high-capacity carton magazine, rotary-type carton forming unit, gluing unit, coding unit, V-fold leaflet insertion unit, card feeding unit, ejector, other options

Model：VCP-Q　Horizontal Cartoning Machine (Intermittent Motion)

Features

Horizontal type intermittent motion cartoning machine suited to high-variety, small to medium lot production. Comes with a Quick Change mechanism to respond to changes in production type.

Two types available with size change mechanism: standard (Q) and economy (QE).

A series lineup that covers packing of relatively small products through to larger sizes suited to volume packaging.

※ Figures in ( ) are in case Gluing uni is included.

		VCP50Q (50QE) (500Q)	VCP60Q (60QE) (600Q)	VCP90Q (90QE) (900Q)
Carton （mm）	Width	35 ～ 100	35 ～ 125	50 ～ 180
	Height	（10）20 ～ 60（80）	（15）20 ～ 60（80）	25 ～ 80
	Length	50 ～ 170	50 ～ 170	100 ～ 250
Speed (Cartons/Min)		30 ～ 80	30 ～ 60	10 ～ 30（40）
Machine （mm）	Length	3,655	3,780〔30〕	4,630〔24〕
	Width	1,600	1,600	1,925
	Height	1,580	1,580	1,675
Power Consumption （KVA）		〔3.7〕	〔3.7〕	〔5.1〕
Air Consumption （Nℓ／Min）		20〔70〕	20〔70〕	20〔70〕
Weight （kg）		2,000	2,000	2,500
Optional Accessories		Various Automatic Product Feeding Unit, Large Volume Carton Magazine, Glue Unit, Conding Unit, Leaflet Folding Unit, Various Detect Device, Special Flap Shapes

Model：VCPB (BALCONY TYPE)　Horizontal Cartoning Machine (Intermittent Motion)

Features

A Compact Cartoning Machine Developed For Medical & Cosmetics Customers.

1. A balcony type frame structure ensures easier maintainance and cleaning works on the lower part of machines.

2. A forced carton opening device, equipped as a standard feature, stabilizes carton pick-up & forming.

		VCPB 120	VCPB 200	VCPB 240	VCPB 300
Carton (mm)	Width	20 ～ 80	70 ～ 160	40 ～ 200	50 ～ 250
	Height	10 ～ 60	20 ～ 110	20 ～ 120	40 ～ 170
	Length	50 ～ 170	150 ～ 300	90 ～ 150	90 ～ 150
	Width＋Height	MAX. 140	MAX. 275	MAX. 300	MAX. 275
Speed (Cartons/Min)		30 ～ 80	10 ～ 30	10 ～ 60	20 ～ 30
Machine (mm)	Length	3,375	5,110	5,600	5,800
	Width	1,310	1,950	1,575	1,660
	Height	1,516	1,650	1,675	1,650
Power Consumption (KVA)		約9	約11	約11	約11
Air Consumption (Nℓ／Min)		約500	約500	約500	約500
Weight (kg)		2,100	3,000	3,300	4,000
Optional Accessories		Various Automatic Product Feeder Unit, Coding Unit, Leaflet Folding Unit, Gluing Unit, Card Pick up & Feeding Unit, Ejector, Carton Bar Code Check, Coding Check, Leaflet Check, Glue Application Check, Others

Model：VCPC (BALCONY TYPE)　Horizontal Cartoning Machine (Intermittent Motion)

Features

A Space Saving Balcony Type Cartoning Machine Developed For Medical & Cosmetics Customers.

1. Able to save the installation space compared to our existing machine.

2. Able to give stable and reliable insertion with Leaflet Servo Inserting System.

3. Able to stably perform the carton pick up, forming, and opening with Carton Opening Device.

4. Universal Design which makes easy operation and maintenance works possible for everyone.

		VCPC140	VCPC240
Carton (mm)	Width	20～105	40～200
	Height	10～100	30～130
	Length	60～180	100～170
Speed (Cartons/Min)		MAX.100	MAX.70
Machine (mm)	Length	3,629	4,733
	Width	1,553	1,593
	Height	1,410	1,760
Power ConsumptioAir Consumption(Nℓ／Min)n (KVA)		34	25
Air Consumption (Nℓ／Min)		80	100
Weight (kg)		2,500	3,000
Optional Accessories		Various Automatic Feeder Unit, Leaflet Folding Unit, Gluing Unit, Card Oick-up & Feeding Unit, Ejector, Carton Bar Code Check, Leaflet Check, Glue Application Check, Others

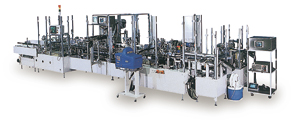

Model：VZC52　Vertical Cartoning Machine (Intermittent Motion)

Features

The custom design possible with the VZC type specialized cartoning machine is ideal for a variety of products that could not be handled in the past.

This space-saving vertical cartooning machine is designed to form set-up type cartons and automatically supply products.

		VZC52
Carton (mm)	Width	105～210
	Height	110～250
	Length	35～140
Speed (Cartons/Min)		20～40
Machine (mm)	Length	5,340
	Width	1,500
	Height	1,800
Power Consumption (KVA)		3.1
Air Consumption (Nℓ／Min)		300
Weight (kg)		3,000
Optional Accessories		Various Automatic Feeder Unit, Coding Unit, Taping Device, Leaflet Feeding Unit, Various Detect Device

Model：VSVB (BALCONY TYPE)　Top-Loading Set-Up Caser

Features

A fully automatic corrugated cardboard set-up caser which performs case forming and product-loading on one single machine. Case opens vertically and products are loaded from the top opening. Quick change mechanism featured as the standard assured easier changeover.

Many choices are available for product-loading system; XY robot, vertical multi-joint robot, Mechanical motion, and etc. O-M also has experiences in case dimensions, case geometry other than the below-listed VSVB specifications.

		VSVB
Carton (mm)	Length	200～600
	Width	150～350
	Depth	100～300
Speed (Cartons/Min)		12
Machine （mm）	Length	4,480
	Width	2,400
	Height	1,770
Power Consumption （KVA）		6〔9〕
Air Consumption （Nℓ／Min）		200
Weight（kg）		2,000
※ Figures in ( ) are in case Gluing uni is included.
Optional Accessories		Various Automatic Product Accumulating Feeder Unit (including robot), Coding Unit, Pattition Inserter Unit, Leaflet Feeder, Large Volume Case Magazine, Automatic Case Feeder Unit, Various Detect Device.

Model：VSBA　Side-Loading Set-Up Caser

Features

Fully automatic corrugated cardboard set-up caser which achieves all processes of case set-up, product loading and case sealing on one machine. For case sealing, two choices are available; hot melt gluing and adhesive tape.

Depending on the size range of case, two model types are available; VSBA-I and VSBA-II.

A quick change mechanism is equipped as a standard feature for easier change-over. Case is opened at its side and products are loaded horizontally.

		VSBA-Ⅰ	VSBA-Ⅱ
Carton （mm）	Length	200～500	300～580
	Width	120～350	200～400
	Depth	120～500	180～500
Speed （Ctn／Min）		～15	～12
Machine （mm）	Length	2,460	2,810
	Width	2,560	2,770
	Height	2,040	2,040
Power Consumption （KVA）		1.7 [4.7]	1.7 [4.7]
Air Consumption （Nℓ／Min）		400	400
Weight （kg）		1,500	1,700
※ Figures in ( ) are in case Gluing uni is included.
Optional Accessories		Various Automatic Product Accumulating Feeder Unit, Coding Unit, Pattition Inserter, Large Volume Case Magazine, Automatic Case Feeder, Various Detect Device, 90° Tumover Discharging Unit

Model: VLP Coding Unit

Features

1. Space-saving design achieved through the adoption of a newly developed two-axis robot transfer structure
2. High-quality coding and reliable inspection enabled by a proprietary transfer mechanism
3. Coding on four sides made possible by the adoption of a rotating suction head mechanism
4. Fail-safe structure ensures reliable ejection of nonconforming products

Applicable carton dimensions（mm）	Width（Ｗ）	40 ～ 200
	Height（Ｈ）	10 ～ 160
	Length（Ｌ）	100 ～ 240
Speed（Ctn／Min）		MAX 65
Machine （mm）	Length（Ｌ）	1300
	Width（Ｗ）	1124
	Height（Ｈ）	1871

Model：VCF・VCFE　Forming Cartoner

Features

A collation-packaging cartoning machine using cardboard of E-flute corrugated board.

※Items shown in parentheses indicate special specifications.

		VCF200	VCF250	VCFE
Carton (mm)	Width	100～200	(100)130 ～ 250(290)	60～210
	Height	30 ～ 80(90)	50 ～ 100(175)	90～180
	Length	(65)100 ～ 150	(65)100 ～ 200	20～90
Speed (Cartons/Min)		10～30	10～30	17～70
Machine (mm)	Length	3,500	4,000	2,500
	Width	1,200	1,500	1,500
	Height	1,800	1,800	1,900
Power Consumption (KVA)		7.1	7.1	3.5
Air Consumption (Nℓ／Min)		150[150]	150[150]	100
Weight (kg)		1,600	2,000	1,000
※Custom-made machines are available.
Optional Accessories		Automatic Accumulator-Feeder, Large Volume Sheet Magazine Coding Unit, Top Flap Gluing Unit, Leaflet & Pamphlet Feeding Unit, Counter, Ejector, Various Detect Device
