Usage / FunctionCustom Machines-Various Automatic Feeding Units
Parallel Link Robot–Type Automatic Feeding Unit
Features
1. Products conveyed randomly from upstream processes are picked up by a robot and supplied in synchronization with continuously conveyed cartoner buckets.2. By incorporating a vision system, the system can correct product orientation, enabling reliable feeding even when product posture is inconsistent. It also supports the receipt of products arranged in multiple lanes.
3. Depending on the robot head configuration, the system is capable of grouped feeding of multiple products at once.
| Main Unit Capacity |
| Processing capacity: 125 units per minute *The above speed is a reference value per robot unit. |
| Main Applicable Products |
| Retort pouches, pillow-packaged products, three-side seal packages, four-side seal packages, tubes, others |

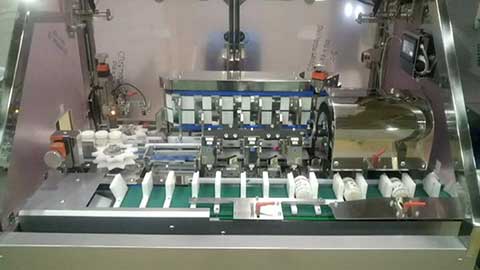

Side-Attach Type Automatic Feeding Unit
Features
1. Bottles are separated at a fixed pitch using a side-attach mechanism and supplied to the cartoner by a suction-type transfer head.2. Each bottle is individually picked up by suction, lifted, and transferred, ensuring reliable feeding without the risk of scratching or damaging the product.
| Main Unit Capacity |
| 70 bottles per minute *The above speed is provided as a reference. |
| Main Applicable Products |
| Bottle-type cosmetics, pharmaceuticals, food products, daily-use commodities, others |
Vertical Double-Servo Attach Conveyor–Type Automatic Feeding Unit
Features
1. Products conveyed at a random pitch are accumulated in multiple units by a tandem, double-servo-driven attach conveyor and supplied to the main cartoner unit.2. Operation can be adjusted to match product thickness, enabling stable and reliable accumulation.
| Main Unit Capacity |
| 150 bags per minute (per unit) |
| Main Applicable Products |
| Three-side seal packages, four-side seal packages, others |

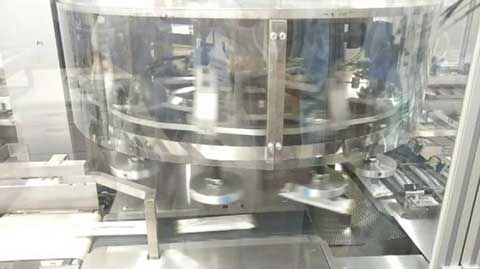

Merry-Go-Round Type Automatic Feeding Unit
Features
1. Products conveyed at a random pitch are corrected for pitch and supply timing by a single-servo-driven pitch-correction conveyor, picked up by the merry-go-round unit, and supplied to continuously conveyed cartoner buckets.2. Randomly supplied products can be fed into a continuously operating cartoner without stopping product flow.
3. A variable-speed merry-go-round system, which adjusts its speed in accordance with the incoming product pitch, is also available in the lineup.
| Main Unit Capacity |
| 250 units per minute *The above speed is provided as a reference. |
| Main Applicable Products |
| Retort pouches, pillow-packaged products, three-side seal packages, four-side seal packages, tray products, others |
Inverting Double-Servo Bucket Conveyor–Type Automatic Feeding Unit
Features
1. Products conveyed from upstream processes are transferred to a double-servo-driven bucket conveyor, inverted, accumulated in multiple units, and supplied to the cartoner.2. By supplying products individually into each bucket and performing an inverting motion, stable and reliable inverted accumulation is achieved.
| Main Unit Capacity |
| 400 bags per minute (per unit) |
| Main Applicable Products |
| Retort pouches, pillow-packaged products, three-side seal packages, four-side seal packages, others |
