Usage / FunctionCorrugated Cardboard Casers-Wrap-round Type Separate Pack Caser

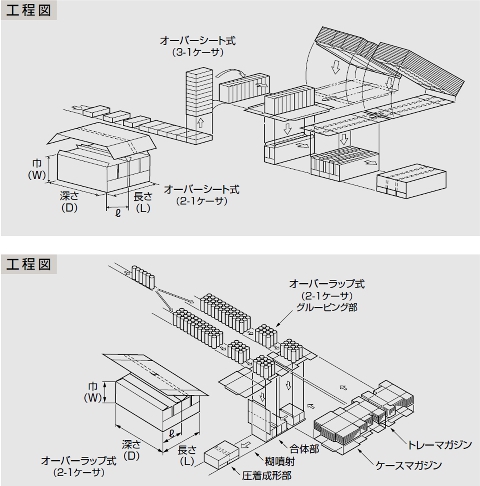

Model: VSMT Separate-Pack Caser
Features

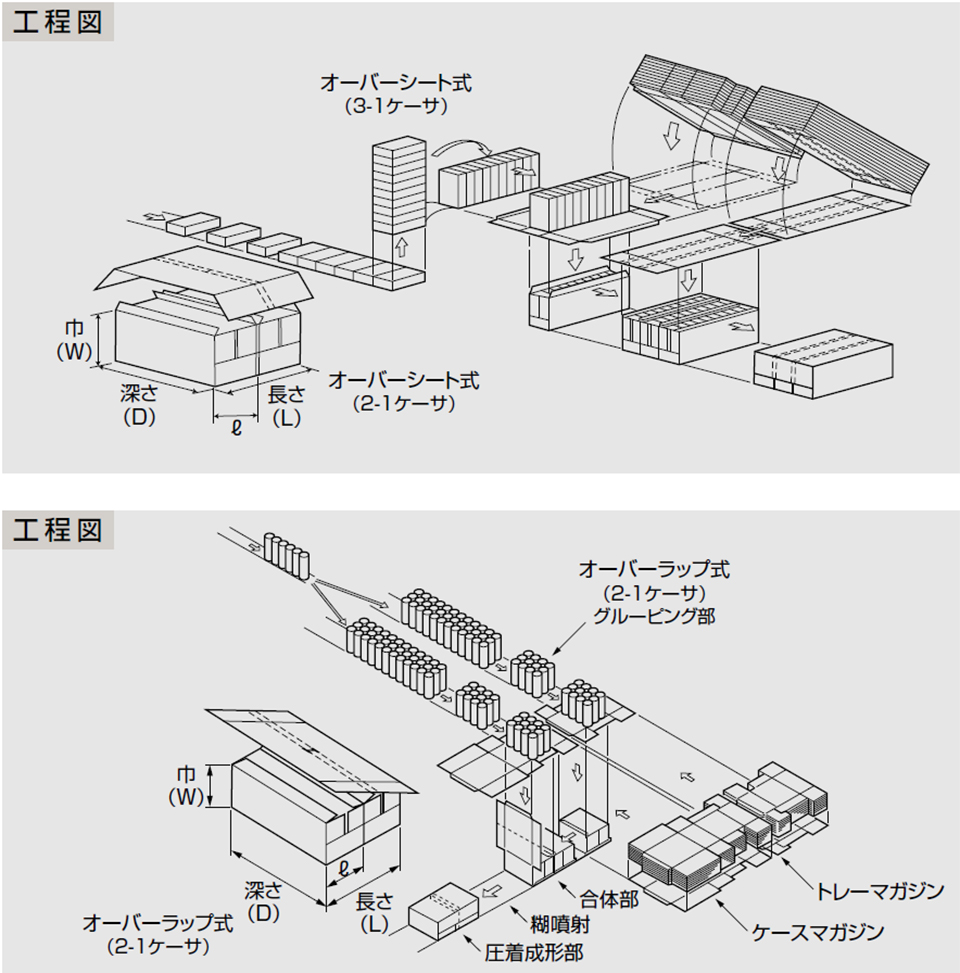

This wrap-around caser is designed for portion packaging that can be divided into 2-in-1 or 3-in-1 units at the distribution stage.Both over-sheet (OS) and over-wrap (OW) configurations are available.
| VSMT (OS) 2-1 |
VSMT (OS) 3-1 |
VSMT (OW) 2-1 |
||
| Carton (mm) |
Length (ℓ) (L) |
120 ～ 145 240 ～ 290 |
120 ～ 145 360 ～ 435 |
130 ～ 167 260 ～ 335 |
| Width | 170 ～ 200 | 170 ～ 200 | 85 ～ 130 | |
| Depth | 500 ～ 560 | 500 ～ 560 | 350 ～ 500 | |
| Speed (Cartons/Min) |
～11 | ～8 | ～6 | |
| Machine (mm) |
Length | 4,090 | 4,090 | 4,850 |
| Width | 2,470 | 2,470 | 2,350 | |
| Height | 1,950 | 1,950 | 1,700 | |
| Power Consumption (KVA) |
13.4 | 13.4 | 8.2 | |
| Air Consumption (Nℓ／Min) |
300 | 300 | 450 | |
| Weight (kg) |
3,000 | 3,000 | 2,500 | |
| Optional Accessories | Various automatic product accumulation and feeding systems(including robots), coding unit, partition feeding unit, pamphlet feeding unit, high-capacity sheet magazine, automatic sheet feeding unit, various detection units | |||
