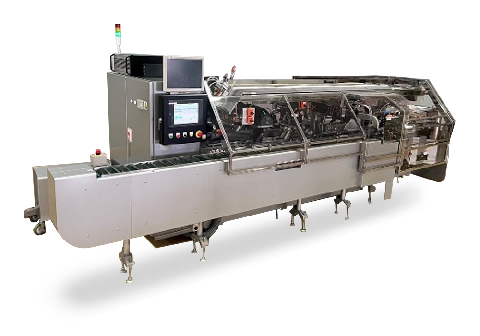

Model: VCPD (BALCONY TYPE) Horizontal Intermittent Cartoner
Features
1. Contributes to a more compact line layout(700 mm shorter than conventional models)
2. Newly developed carton inversion mechanism enables coding on all six sides
3. Hygienic, user-friendly frame structure
| VCPD140 | ||
| Carton (mm) |
Width | 20～105 |
| Height | 10～80 | |
| Length | 60～180 | |
| Speed (Cartons/Min) |
MAX.70 | |
| Machine (mm) |
Length | 3,885 |
| Width | 1,600 | |
| Height | 1,920 | |
| Optional Accessories | Various automatic product feeding units, automatic size changeover, in-machine GS1 coding and inspection, glue application inspection unit, leaflet presence inspection unit, carton mix-up detection unit, leaflet mix-up detection unit, other options | |

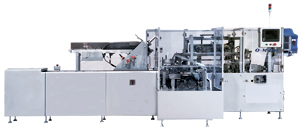

Model：VCPL Horizontal Cartoning Machine (Intermittent Motion)
Features
1. Intermittent motion cartoning machine which can handle large size cartons.2. Able to make even height-tall cartons finish beautifully.
| VCPL12 | ||
| Carton（mm） | Width | 100～170 |
| Height | 65～200 | |
| Length | 130～255 | |
| Speed(Cartons/Min) | 15～30 | |
| Machine （mm） |
Length | 3,780 |
| Width | 2,250 | |
| Height | 1,600 | |
| Power Consumption （KVA） |
12 | |
| Air Consumption （Nℓ／Min） |
300 | |
| Weight （kg） | 3,500 | |
| Optional Accessories | Various Automatic Feeding Unit, Coding Unit, Large Volume Carton Magazine, Ejector, Various Detect Device, Counter | |

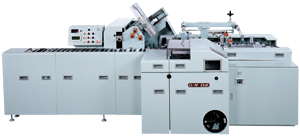

Model：VCP-Q Horizontal Cartoning Machine (Intermittent Motion)
Features
Horizontal type intermittent motion cartoning machine suited to high-variety, small to medium lot production. Comes with a Quick Change mechanism to respond to changes in production type.Two types available with size change mechanism: standard (Q) and economy (QE).
A series lineup that covers packing of relatively small products through to larger sizes suited to volume packaging.
※ Figures in ( ) are in case Gluing uni is included.
| VCP50Q (50QE) (500Q) |
VCP60Q (60QE) (600Q) |
VCP90Q (90QE) (900Q) |
|||
| Carton （mm） |
Width | 35 ～ 100 | 35 ～ 125 | 50 ～ 180 | |
| Height | （10）20 ～ 60（80） | （15）20 ～ 60（80） | 25 ～ 80 | ||
| Length | 50 ～ 170 | 50 ～ 170 | 100 ～ 250 | ||
| Speed (Cartons/Min) |
30 ～ 80 | 30 ～ 60 | 10 ～ 30（40） | ||
| Machine （mm） |
Length | 3,655 | 3,780〔30〕 | 4,630〔24〕 | |
| Width | 1,600 | 1,600 | 1,925 | ||
| Height | 1,580 | 1,580 | 1,675 | ||
| Power Consumption （KVA） |
〔3.7〕 | 〔3.7〕 | 〔5.1〕 | ||
| Air Consumption （Nℓ／Min） |
20〔70〕 | 20〔70〕 | 20〔70〕 | ||
| Weight （kg） | 2,000 | 2,000 | 2,500 | ||
| Optional Accessories | Various Automatic Product Feeding Unit, Large Volume Carton Magazine, Glue Unit, Conding Unit, Leaflet Folding Unit, Various Detect Device, Special Flap Shapes | ||||

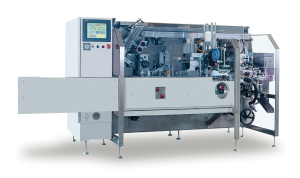

Model：VCPB (BALCONY TYPE) Horizontal Cartoning Machine (Intermittent Motion)
Features
A Compact Cartoning Machine Developed For Medical & Cosmetics Customers.1. A balcony type frame structure ensures easier maintainance and cleaning works on the lower part of machines.
2. A forced carton opening device, equipped as a standard feature, stabilizes carton pick-up & forming.
| VCPB 120 | VCPB 200 | VCPB 240 | VCPB 300 | ||
| Carton (mm) |
Width | 20 ～ 80 | 70 ～ 160 | 40 ～ 200 | 50 ～ 250 |
| Height | 10 ～ 60 | 20 ～ 110 | 20 ～ 120 | 40 ～ 170 | |
| Length | 50 ～ 170 | 150 ～ 300 | 90 ～ 150 | 90 ～ 150 | |
| Width＋Height | MAX. 140 | MAX. 275 | MAX. 300 | MAX. 275 | |
| Speed (Cartons/Min) |
30 ～ 80 | 10 ～ 30 | 10 ～ 60 | 20 ～ 30 | |
| Machine (mm) |
Length | 3,375 | 5,110 | 5,600 | 5,800 |
| Width | 1,310 | 1,950 | 1,575 | 1,660 | |
| Height | 1,516 | 1,650 | 1,675 | 1,650 | |
| Power Consumption (KVA) |
約9 | 約11 | 約11 | 約11 | |
| Air Consumption (Nℓ／Min) |
約500 | 約500 | 約500 | 約500 | |
| Weight (kg) |
2,100 | 3,000 | 3,300 | 4,000 | |
| Optional Accessories | Various Automatic Product Feeder Unit, Coding Unit, Leaflet Folding Unit, Gluing Unit, Card Pick up & Feeding Unit, Ejector, Carton Bar Code Check, Coding Check, Leaflet Check, Glue Application Check, Others | ||||
Model：VCPC (BALCONY TYPE) Horizontal Cartoning Machine (Intermittent Motion)
Features
A Space Saving Balcony Type Cartoning Machine Developed For Medical & Cosmetics Customers.1. Able to save the installation space compared to our existing machine.
2. Able to give stable and reliable insertion with Leaflet Servo Inserting System.
3. Able to stably perform the carton pick up, forming, and opening with Carton Opening Device.
4. Universal Design which makes easy operation and maintenance works possible for everyone.
| VCPC140 | VCPC240 | ||
| Carton (mm) |
Width | 20～105 | 40～200 |
| Height | 10～100 | 30～130 | |
| Length | 60～180 | 100～170 | |
| Speed (Cartons/Min) |
MAX.100 | MAX.70 | |
| Machine (mm) |
Length | 3,629 | 4,733 |
| Width | 1,553 | 1,593 | |
| Height | 1,410 | 1,760 | |
| Power ConsumptioAir Consumption(Nℓ／Min)n (KVA) |
34 | 25 | |
|
Air Consumption |
80 | 100 | |
| Weight (kg) |
2,500 | 3,000 | |
| Optional Accessories | Various Automatic Feeder Unit, Leaflet Folding Unit, Gluing Unit, Card Oick-up & Feeding Unit, Ejector, Carton Bar Code Check, Leaflet Check, Glue Application Check, Others | ||
