Usage / FunctionCorrugated Cardboard Casers-Setup Type Side Loading Caser

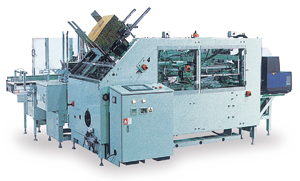

Model：VSBA Side-Loading Set-Up Caser
Features
Fully automatic corrugated cardboard set-up caser which achieves all processes of case set-up, product loading and case sealing on one machine. For case sealing, two choices are available; hot melt gluing and adhesive tape.Depending on the size range of case, two model types are available; VSBA-I and VSBA-II.
A quick change mechanism is equipped as a standard feature for easier change-over. Case is opened at its side and products are loaded horizontally.
| VSBA-Ⅰ | VSBA-Ⅱ | ||
| Carton （mm） |
Length | 200～500 | 300～580 |
| Width | 120～350 | 200～400 | |
| Depth | 120～500 | 180～500 | |
| Speed （Ctn／Min） |
～15 | ～12 | |
| Machine （mm） |
Length | 2,460 | 2,810 |
| Width | 2,560 | 2,770 | |
| Height | 2,040 | 2,040 | |
| Power Consumption （KVA） |
1.7 [4.7] | 1.7 [4.7] | |
| Air Consumption （Nℓ／Min） |
400 | 400 | |
| Weight （kg） | 1,500 | 1,700 | |
| ※ Figures in ( ) are in case Gluing uni is included. | |||
| Optional Accessories | Various Automatic Product Accumulating Feeder Unit, Coding Unit, Pattition Inserter, Large Volume Case Magazine, Automatic Case Feeder, Various Detect Device, 90° Tumover Discharging Unit | ||
