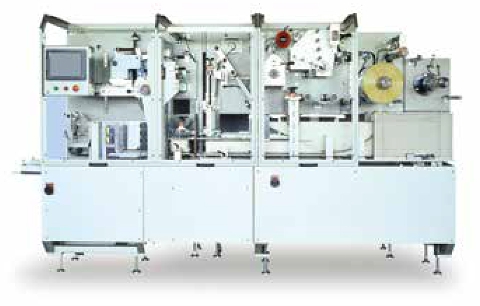

Model：VWKC (BALCONY TYPE) Film Over-Wrapping Machine
Features
A film-over wrapping machine which pushes cartons to film supplied from a rolled film, sever the film, and wrap the cartons over with the film after accumulating certain number of cartons.※ Items shown in parentheses indicate special specifications.
| VWKC | ||
| Carton （mm） |
Width | 70～220 |
| Height | 70 ～ 180 | |
| Length | 60 ～ 285 | |
| Speed (Cartons/Min) |
5 ～ 30(40) | |
| Machine （mm） |
Length | 2,620 |
| Width | 1,230 | |
| Height | 1,730 | |
| Power Consumption （kVA） | about 15 | |
| Air Consumption （Nℓ／Min） | 60 | |
| Weight (kg) | 1,700 | |
| Optional Accessories | Automatic Product Feeding Unit, Eye-mark Detect Device, Tear Tape Cutting Unit (V-Shape), Extra Film Magazine, Automatic Film Splicer, Various Sealing Checker, Film Position Detect Unit, Film Position Correcting Unit, Ejector, Film-Roll Lift-Up Unit | |
