Vertical multitasking machines (X・Z・C・Y)

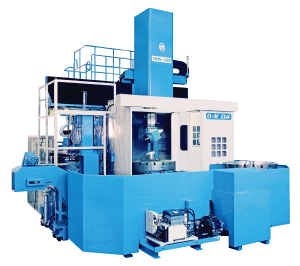

TMG-35/40N
- Track gaugeΦ1000mm~
Φ39.4inch~ - Shaft length3000mm
118.1inch - Max. weight2000kg~
4400lbs~

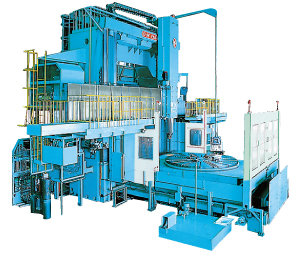

TMMe-12N(Vertical Turning Lathe)
- Track gaugeΦ1250mm
Φ49.2inch - Wheel diameterΦ1600mm
Φ63.0inch - Shaft length1400mm(1100mm)
55.1inch(43.3inch) - Max. weight8000kg(4000kg)
17600lbs(8800lbs)
※ Numerals in parentheses"()"above are for APC specifications.
Turning center equipped with three-axis control (X, Y, Z) and table arbitrary-indexing mechanism.
Heavy-duty angle head enables five-face machining with high rigidity.
With the B-axis angle, this single machine can function as a vertical lathe, vertical machining center, horizontal machining center and oblique cutter.
Common bed, single-pole column, 240 mm square ram, and two-face constraint (turning tool) for high rigidity.
TMMe-16N(Vertical Turning Lathe)
- Track gaugeΦ1600mm
Φ63.0inch - Wheel diameterΦ2000mm
Φ78.7inch - Shaft length1600mm(1300mm)
63.0inch(51.2inch) - Max. weight10000kg(5000kg)
22000lbs(11000lbs)
※ Numerals in parentheses"()"above are for APC specifications.
Turning center equipped with three-axis control (X, Y, Z) and table arbitrary-indexing mechanism.
Heavy-duty angle head enables five-face machining with high rigidity.
With the B-axis angle, this single machine can function as a vertical lathe, vertical machining center, horizontal machining center and oblique cutter.
Common bed, single-pole column, 240 mm square ram, and two-face constraint (turning tool) for high rigidity.
TMMe-20N(Vertical Turning Lathe)
- Track gaugeΦ2000mm
Φ78.7inch - Wheel diameterΦ2400mm
Φ94.5inch - Shaft length2100mm(1800mm)
82.7inch(70.9inch) - Max. weight15000kg(7000kg)
33000lbs(15400lbs)
※ Numerals in parentheses"()"above are for APC specifications.
Turning center equipped with three-axis control (X, Y, Z) and table arbitrary-indexing mechanism.
Heavy-duty angle head enables five-face machining with high rigidity.
With the B-axis angle, this single machine can function as a vertical lathe, vertical machining center, horizontal machining center and oblique cutter.
Common bed, single-pole column, 240 mm square ram, and two-face constraint (turning tool) for high rigidity.
TMM-10/12N(Vertical lathe capable of 5-face machining)
- Track gaugeΦ1000mm
39.37inch - Wheel diameterΦ1200mm
47.2inch - Shaft length750mm(540mm)
29.5inch(21.3inch) - Max. weight2000kg(1000kg)
4400lbs(2200lbs)
With its vertical lathe and machining center features, this lathe is capable of various machining steps in a single process and provides great power for combined machining processes for large-sized parts.
The TMM series is a vertical turning center that is ahead of the times.
TMM-12/16N(Vertical lathe capable of 5-face machining)
- Track gaugeΦ1250mm
Φ49.2inch - Wheel diameterΦ1600mm
Φ63.0inch - Shaft length1200mm(900mm)
47.2inch(35.4inch) - Max. weight8000kg(4000kg)
17600lbs(8800lbs)
With its vertical lathe and machining center features, this lathe is capable of various machining steps in a single process and provides great power for combined machining processes for large-sized parts.
The TMM series is a vertical turning center that is ahead of the times.
TMM-16/20N(Vertical lathe capable of 5-face machining)
- Track gaugeΦ1600mm
Φ63.0inch - Wheel diameterΦ2000mm
Φ78.7inch - Shaft length1600mm(1300mm)
63.0inch(51.2inch) - Max. weight10000kg(5000kg)
22000lbs(11000lbs)
With its vertical lathe and machining center features, this lathe is capable of various machining steps in a single process and provides great power for combined machining processes for large-sized parts.
The TMM series is a vertical turning center that is ahead of the times.
TMM-20/25N(Vertical lathe capable of 5-face machining)
- Track gaugeΦ2000mm
Φ78.7inch - Wheel diameterΦ2500mm
Φ98.4inch - Shaft length1800mm(1400mm)
70.9inch(55.1inch) - Max. weight15000kg(7000kg)
33000lbs(15400lbs)
With its vertical lathe and machining center features, this lathe is capable of various machining steps in a single process and provides great power for combined machining processes for large-sized parts.
The TMM series is a vertical turning center that is ahead of the times.

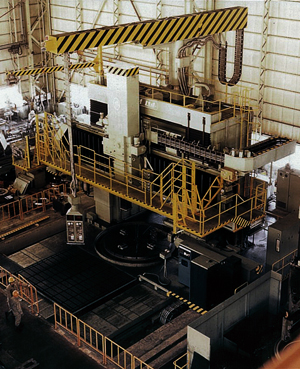

TMM-35/40N(Vertical lathe capable of 5-face machining)
- Track gaugeΦ3500mm
Φ137.8inch - Wheel diameterΦ4000mm
Φ157.5inch - Shaft length3500mm
137.8inch - Max. weight30000kg
66150lbs
With its vertical lathe and machining center features, this lathe is capable of various machining steps in a single process and provides great power for combined machining processes for large-sized parts.
The TMM series is a vertical turning center that is ahead of the times.
