O-M Ltd.

~Φ2500mm(98.43inch)

VTLex 2500

VTLex 2500

  • Track gaugeΦ2500mm
    Φ98.43inch
  • Wheel diameterΦ3000mm
    Φ118.11inch
  • Shaft length2215mm(1705mm)
    87.21inch(67.13inch)

    ※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ).
  • Max. weight20000kg(9000kg)
    44000lbs(19800lbs)

    ※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ).

2-axis control CNC turning.

Combines high rigidity with high speed and high accuracy.

VTLex 2500M

VTLex 2500M

  • Track gaugeΦ2500mm
    Φ98.43inch
  • Wheel diameterΦ3000mm
    Φ118.11inch
  • Shaft length2215mm(1705mm)
    87.21inch(67.13inch)
  • Max. weight20000kg(9000kg)
    44000lbs(19800lbs)

※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ).


3-axis control CNC turning center

Milling function and table indexing (C axis) function, in addition to turning.

This enables a wide range of machining and centralization of machining processes.

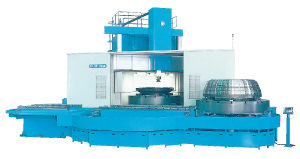

TMMe-25N(Vertical Turning Lathe)

TMMe-25N(Vertical Turning Lathe)

  • Track gaugeΦ2500mm
    Φ98.4inch
  • Wheel diameterΦ3000mm
    Φ118.1inch
  • Shaft length2400mm(2000mm)
    94.5inch(78.7inch)
  • Max. weight20000kg(9000kg)
    44000lbs(19800lbs)

※ Numerals in parentheses"()"above are for APC specifications.

Turning center equipped with three-axis control (X, Y, Z) and table arbitrary-indexing mechanism.

Heavy-duty angle head enables five-face machining with high rigidity.

With the B-axis angle, this single machine can function as a vertical lathe, vertical machining center, horizontal machining center and oblique cutter.

Common bed, single-pole column, 240 mm square ram, and two-face constraint (turning tool) for high rigidity.
