O-M Ltd.

~Φ2000mm(78.74inch)

VTLex 2000

VTLex 2000

  • Track gaugeΦ2000mm
    Φ78.74inch
  • Wheel diameterΦ2500mm
    Φ98.43inch
  • Shaft length1815mm(1415mm)
    71.46inch(55.71inch)

    ※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ).
  • Max. weight15000kg(7000kg)
    33000lbs(15400lbs)

    ※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ).

2-axis control CNC turning.

Combines high rigidity with high speed and high accuracy.

VTLex 2000M

VTLex 2000M

  • Track gaugeΦ2000mm
    Φ78.74inch
  • Wheel diameterΦ2500mm
    Φ78.74inch
  • Shaft length1815mm(1415mm)
    71.46inch(55.71inch)
  • Max. weight15000kg(7000kg)
    33000lbs(15400lbs)

※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ).


3-axis control CNC turning center

Milling function and table indexing (C axis) function, in addition to turning.

This enables a wide range of machining and centralization of machining processes.

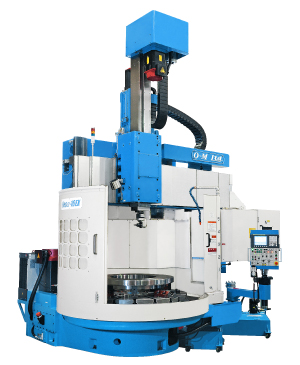

Neo-20EX

Neo-20EX

  • Track gaugeΦ2000mm
    (Φ1800mm・Φ2200mm)
  • Wheel diameterΦ2500mm
    Φ98.4inch
  • Shaft length2000mm(1600mm)
    78.7inch(63.0inch)
  • Max. weight15000kg
    33000lbs

※ Numerals in parentheses"()"above are for APC specifications.

Neoα-20EX

Neoα-20EX

  • Track gaugeΦ2000mm
    (Φ1800mm・Φ2200mm)
    Φ78.7inch
    (φ70.9inch・86.6inch)
  • Wheel diameterΦ2500mm
    Φ98.4inch
  • Shaft length2000mm(1600mm)
    78.7lbs(63.0inch)
  • Max. weight15000kg
    33000lbs

※ Numerals in parentheses"()"above are for APC specifications.

TMS2-20/40N Series(SE Type CNC Vertical Lathe)

TMS2-20/40N Series(SE Type CNC Vertical Lathe)

  • Track gaugeΦ2000mm
    Φ78.7inch
  • Wheel diameterΦ2000mm
    Φ157.5inch
  • Shaft length1600mm
    63.0inch
  • Max. weight20000kg
    44100lbs

Table size 2 to 6m. Machining dia, 4 to 14 m.
Single column traverse makes wide machining capacity.

TMMe-20N(Vertical Turning Lathe)

TMMe-20N(Vertical Turning Lathe)

  • Track gaugeΦ2000mm
    Φ78.7inch
  • Wheel diameterΦ2400mm
    Φ94.5inch
  • Shaft length2100mm(1800mm)
    82.7inch(70.9inch)
  • Max. weight15000kg(7000kg)
    33000lbs(15400lbs)

※ Numerals in parentheses"()"above are for APC specifications.

Turning center equipped with three-axis control (X, Y, Z) and table arbitrary-indexing mechanism.

Heavy-duty angle head enables five-face machining with high rigidity.

With the B-axis angle, this single machine can function as a vertical lathe, vertical machining center, horizontal machining center and oblique cutter.

Common bed, single-pole column, 240 mm square ram, and two-face constraint (turning tool) for high rigidity.

TMM-20/25N(Vertical lathe capable of 5-face machining)

TMM-20/25N(Vertical lathe capable of 5-face machining)

  • Track gaugeΦ2000mm
    Φ78.7inch
  • Wheel diameterΦ2500mm
    Φ98.4inch
  • Shaft length1800mm(1400mm)
    70.9inch(55.1inch)
  • Max. weight15000kg(7000kg)
    33000lbs(15400lbs)

With its vertical lathe and machining center features, this lathe is capable of various machining steps in a single process and provides great power for combined machining processes for large-sized parts.

The TMM series is a vertical turning center that is ahead of the times.

VGN series(Vertical CNC Surface Grinding Machines)

VGN series(Vertical CNC Surface Grinding Machines)

Vertical grinding machine developed for the aircraft industry and machining of precision bearings.

Models with table sizes of 1,000 to 2,000 mm are available.
