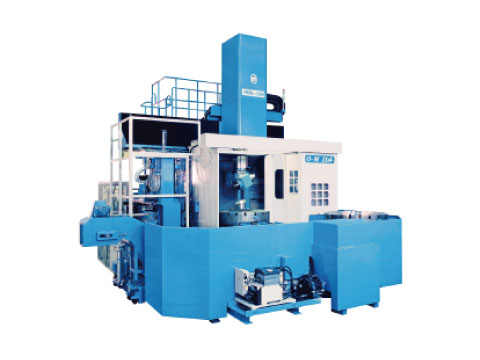

TMMe-12N
Product Overview
Specifications
- Table diameter : Φ1250mm
- Max. turning diameter : Φ1600mm
- Max. turning height : 1400mm（1100mm）
- Max. weight of workpiece : 8000kg（4000kg） ※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ).
Features
Turning center equipped with three-axis control (X, Y, Z) and table arbitrary-indexing mechanism.Heavy-duty angle head enables five-face machining with high rigidity.
With the B-axis angle, this single machine can function as a vertical lathe, vertical machining center, horizontal machining center and oblique cutter.
Common bed, single-pole column, 240 mm square ram, and two-face constraint (turning tool) for high rigidity.
