TMMe-16N
Product Overview
Specifications
- Table diameter : Φ1600mm
- Max. turning diameter : Φ2000mm
- Max. turning height : 1600mm（1300mm）
- Max. weight of workpiece : 10000kg（5000kg） ※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ).
Features
●Turning center equipped with three-axis control (X, Y, Z) and table arbitrary-indexing mechanism.●Heavy-duty angle head enables five-face machining with high rigidity.
●With the B-axis angle, this single machine can function as a vertical lathe, vertical machining center, horizontal machining center and oblique cutter.
●Common bed, single-pole column, 240 mm square ram, and two-face constraint (turning tool) for high rigidity.

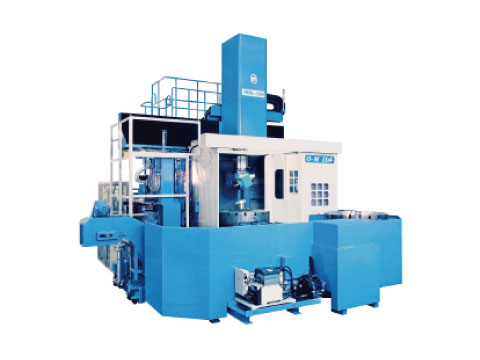

*Image shows TMMe-12N
