VTLex 1100M
Product Overview
Specifications
- Table diameter : Φ1100mm
- Max. turning diameter : Φ1350mm （Φ1300mm）※
- Max. turning height : 750mm/550mm （565mm/365mm）※
- Max. weight of workpiece : 2000kg（1000kg） ※ ※ Numerals in parentheses"()"above are for APC specifications ( the column, however, is of standard specifications ).
Features
This is a high-rigidity turning center with a table diameter of φ1100 mm.It features a structure designed with thorough countermeasures against thermal deformation, including a left-right symmetrical column and separate placement of the table and motor.
In addition to turning operations, the standard specification supports M operations, with a maximum drilling diameter of φ70 mm and tapping up to M36 × 4.

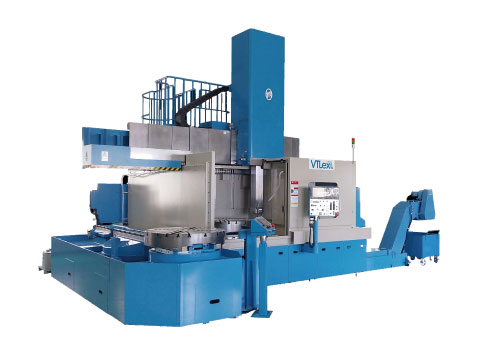

*Image shows VTLex 1100、*3ST2APC specifications
