Φ4000mm（157.5inch） ～Φ6000mm（236.22inch）

• Table diameterΦ4000mm
  Φ157.5inch
• Max. turning diameterΦ5000mm
  Φ196.9inch
• Max. turning height3000mm〔3500mm〕
  118.1inch（137.8inch）
• Max. weight of workpiece20000kg
  66150lbs

• Table diameterΦ5000mm
  Φ196.9inch
• Max. turning diameterΦ6000mm
  Φ236.2inch
• Max. turning height3000mm〔3500mm〕
  118.1inch（137.8inch）
• Max. weight of workpiece40000kg
  88200lbs

• Table diameterΦ6000mm
  Φ236.2inch
• Max. turning diameterΦ7000mm
  Φ275.6inch
• Max. turning height3000mm〔3500mm〕
  118.1inch（137.8inch）
• Max. weight of workpiece50000kg
  110300lbs

• Table diameterΦ4000mm
  Φ157.5inch
• Max. turning diameterΦ5000mm
  Φ196.9inch
• Max. turning height3000mm〔3500mm〕
  118.1inch（137.8inch）
• Max. weight of workpiece20000kg
  44100lbs

• Table diameterΦ5000mm
  Φ196.9inch
• Max. turning diameterΦ6000mm
  Φ236.2inch
• Max. turning height3000mm〔3500mm〕
  118.1inch（137.8inch）
• Max. weight of workpiece40000kg
  88200lbs

• Table diameterΦ6000mm
  Φ236.2inch
• Max. turning diameterΦ7000mm
  Φ275.6inch
• Max. turning height3000mm〔3500mm〕
  118.1inch（137.8inch）
• Max. weight of workpiece50000kg
  110300lbs

• Table diameterΦ6000mm
  Φ236.22inch

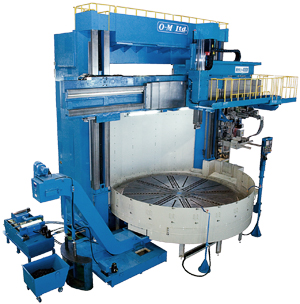

Large-sized vertical lathes, which comprise a system of combined components, offer ideal machine specifications for handling large parts at your company.

Combining components according to target workpieces and working conditions such as table diameter, swing diameter, turning height, table rotation speed, carrying capacity, and tool-slide type configures the ideal cost-effective machine to make your manufacturing line more powerful.

• Table diameterΦ1000mm～
  Φ39.4inch～
• Max. turning height3000mm
  118.1inch
• Max. weight of workpiece2000kg～
  4400lbs～
